      Mastercam
V-9 3-D Milling Training CD





3D Contouring For Mastercam V9 Level 3



With an understanding of the 3D tool path styles available in Mastercam Level 3, you can create efficient machining operations. Learn how to get the most out of your Mill Level 3 programming system and gain a competitive advantage. Watch these lessons right on your computer screen and learn the "Tip's & Tricks" to do your 3D surface machining work more efficiently. These PC based lessons require a basic understanding of simple Mastercam contouring and drilling functions. More valuable than a training class, because you can watch it over and over, this CD is equal to 2-3 days of intense classroom training. You could never get this kind of training from a book.





In these videos you will see the actual Mastercam screen at a 1024x768 high resolution. This is a full screen display of the Mastercam system. Listen to the instructor walk you thru the process and explain the short cuts that will save you time & make you money.

 4 Hours of video instruction, narration and powerful tips  from a  16 year veteran Mastercam user and instructor. Learn at you own pace. Review as often as you like. Train new users when it's convenient. Watch as much or as little as you have time for.

Learn the process for completely machining the part pictured here. Learn how to rough and finish using a variety of tool path styles.

Explainations  of the following Tool Paths

  • Rough - Parallel, Flowline & Pocket
  • Contour “water line machining”
  • Rest Mill
  • Leftover
  • Parallel, Parallel Steep & Shallow
  • Pencil Trace
  • Radial
  • Scallop

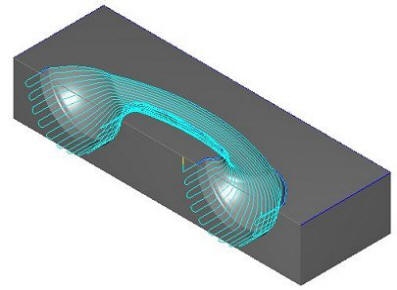

  • Project & Project Blend
  • ... & More

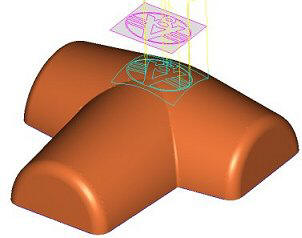

Tool Path Project - Learn several methods for using the powerful Project Tool Path. Create  a multi surface Flowline path over your part. Project 2D paths onto 3D surfaces.

Parallel tool paths offer a wide variety of choices. Use the Parallel style tool path for Rough - Finish - Steep & Shallow operations.

Detailed descriptions of....

  • Absolute & Incremental Heights
  • Pocket Styles
  • Containment Boundaries
  • Working With Solids
  • Solids To Surfaces
  • Selecting By Color
  • Level Control
  • Finding Solid Features
  • Supressing Solid Features
  • Creating 2D Contours From 3D Parts
  • Verifying STL Stock Models
  • Using Machining Libraries (Included)
  • Creating Machining Libraries
  • Total Tolerance - Arc Filter Options
  • High Speed Machining Options
  • Advanced Tool Path Options
  • Gap Settings

Personal, Professional Training
Anytime You Want It For
Only $175.00

Mastercard
Visa



Requirements: Your system should have 8x speed or better CD rom, 1024 x 768 video resolution, sound card & speakers. You do not need to have Mastercam on your system to view the videos. You will need it to use the included machining library and drawing files. You can also use this with a Mastercam Demo Disk.
